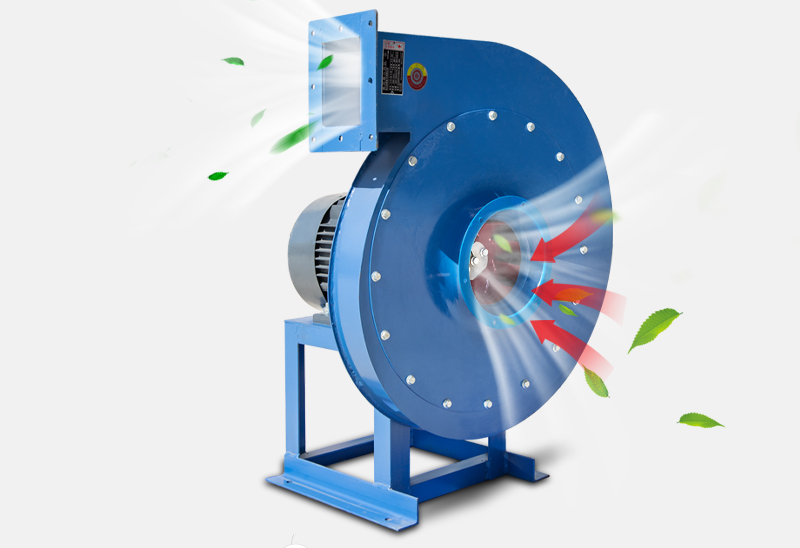

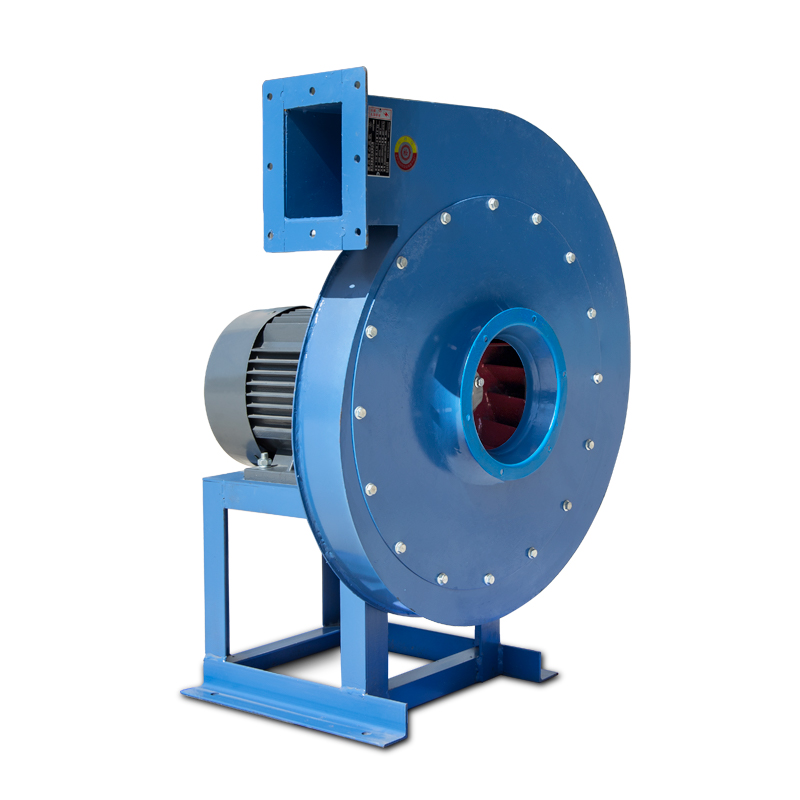

9-19高壓離心風機

高風壓｜大風量｜多角度安裝

High wind pressure｜Large air volume｜Multi-angle installation

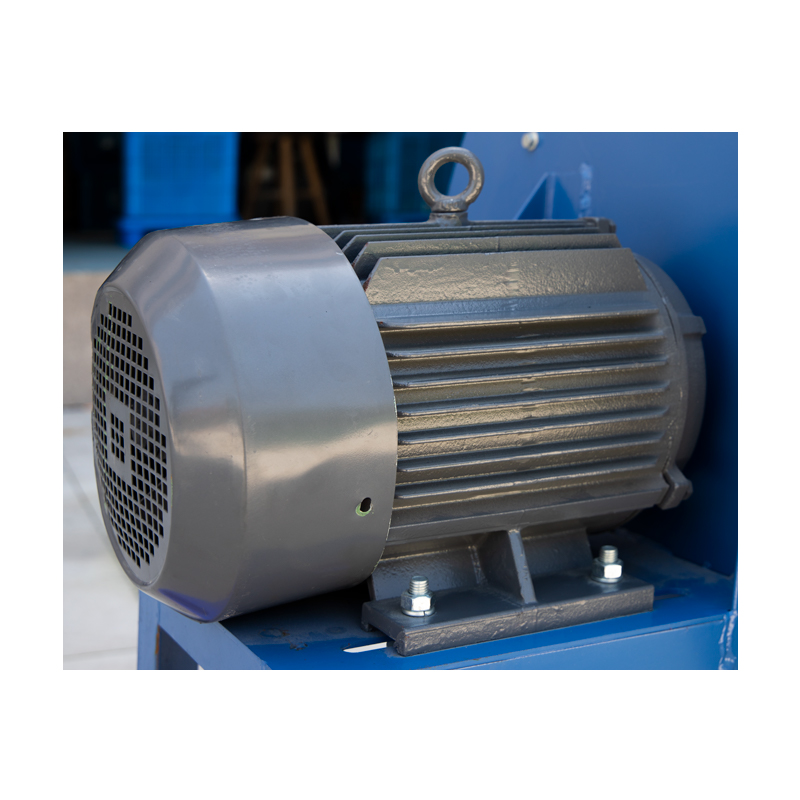

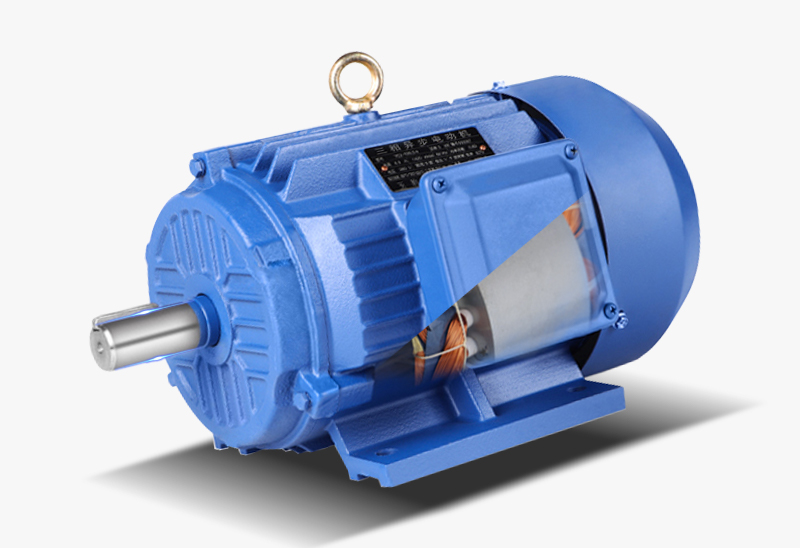

銅芯電機

純銅線圈 轉動扭矩大 動力強勁 運行平穩

Pure copper coil, large rotating torque, strong power,?stable operation

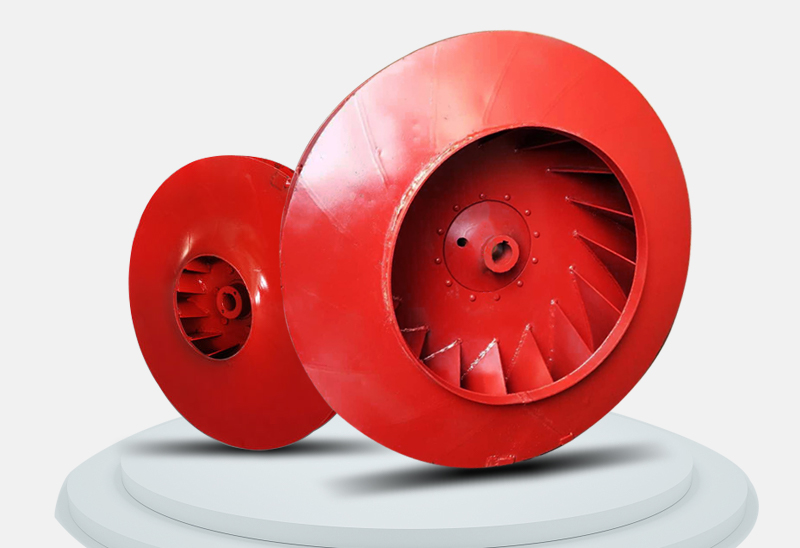

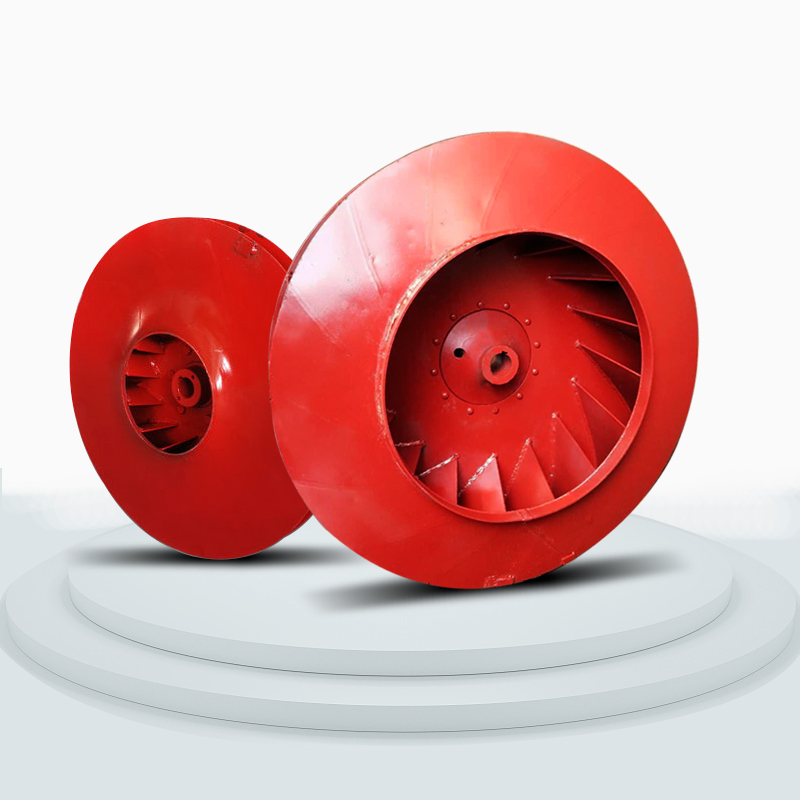

冷軋鋼板葉輪

采用冷軋鋼板材質 硬度高 不易變形 經過嚴格動平衡校準

Using cold-rolled steel plate material, high hardness, not easy to deform,?strictly balanced and calibrated

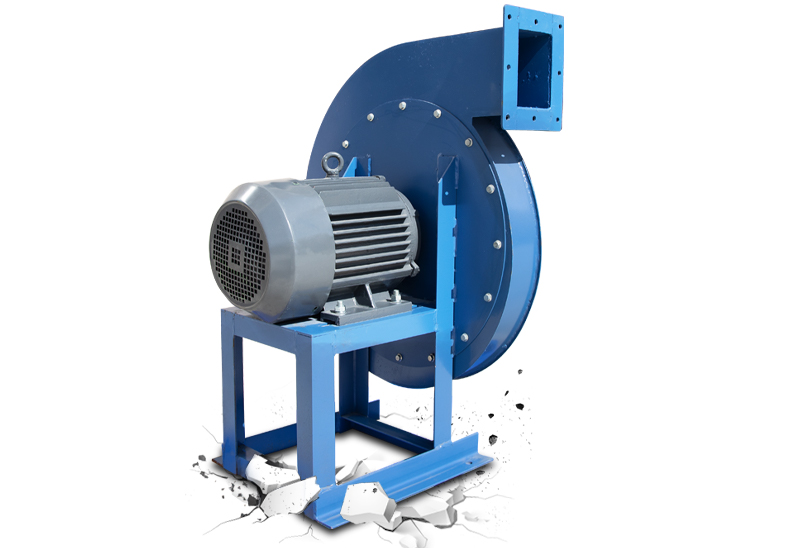

抗震設計

一體化底座 三角力學固定 減輕震動 保證風機平穩運行

Integrated base, triangle mechanical fixation, reduce vibration,?ensure smooth operation of the fan

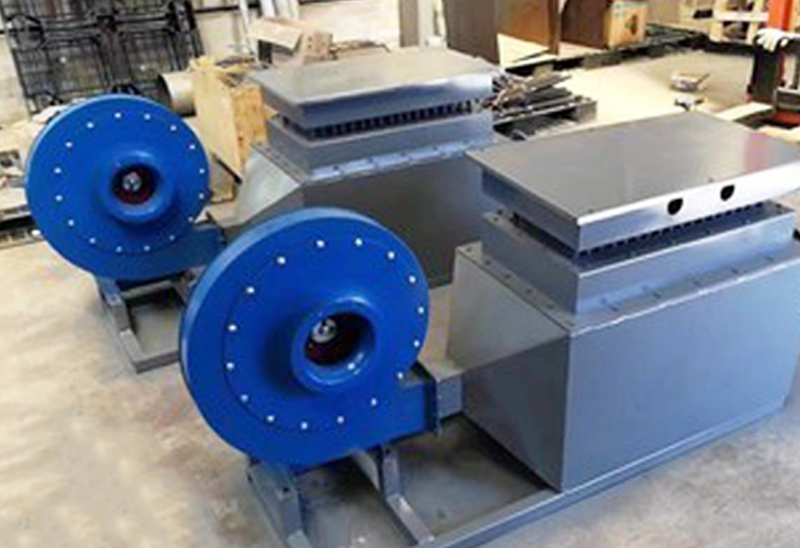

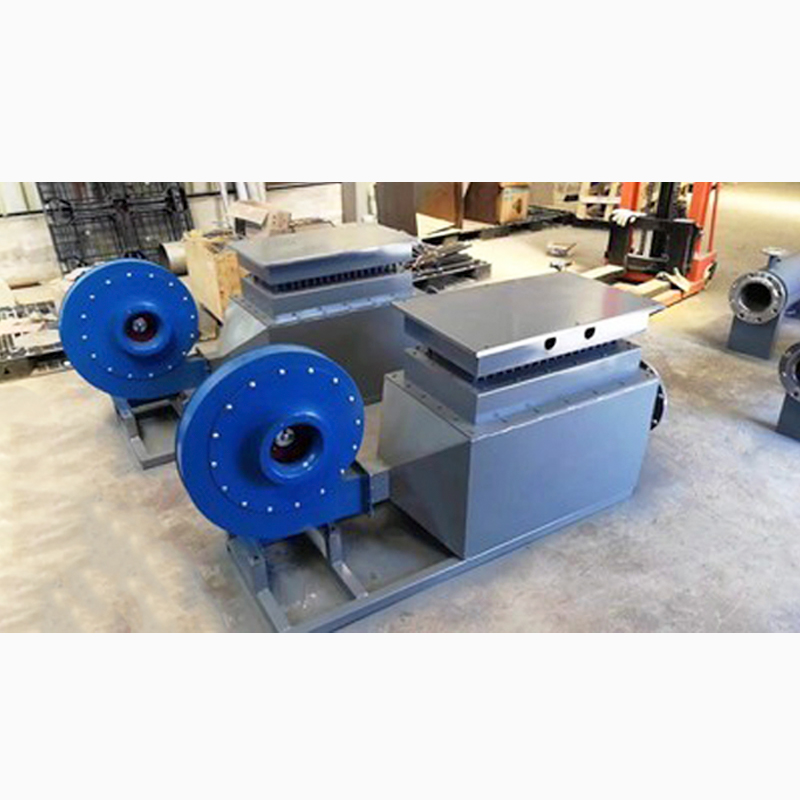

使用場景

可用于高壓吸塵送風，輸送物料，鍋爐排煙引風

Can be used for high-pressure dust suction and air supply, material conveying,?boiler exhaust and air induction

9-19型離心風機一般用于鍛冶爐及高壓強制通風,可廣泛用于輸送物料、空氣及無腐蝕性氣體。輸送的氣體內不允許有粘性物質，

一般使用溫度不超過80℃，所含塵土及硬質顆粒不大于150mg/m3。

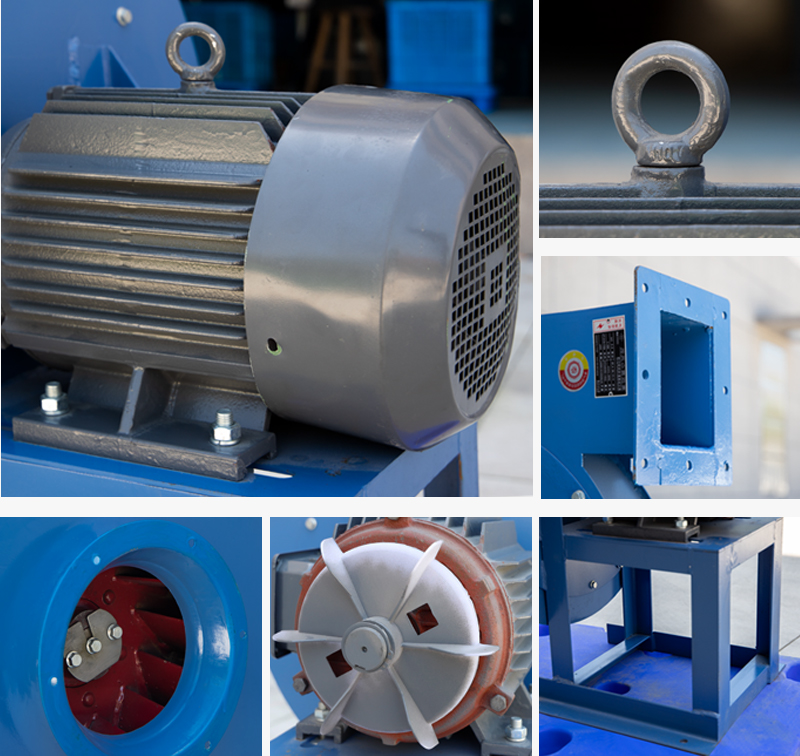

產品細節

銅芯電機 起重吊環 多翼式葉輪 多角度出風口 風機銘牌

Copper core motor, lifting ring, multi-wing impeller, multi-angle air outlet,?fan nameplate

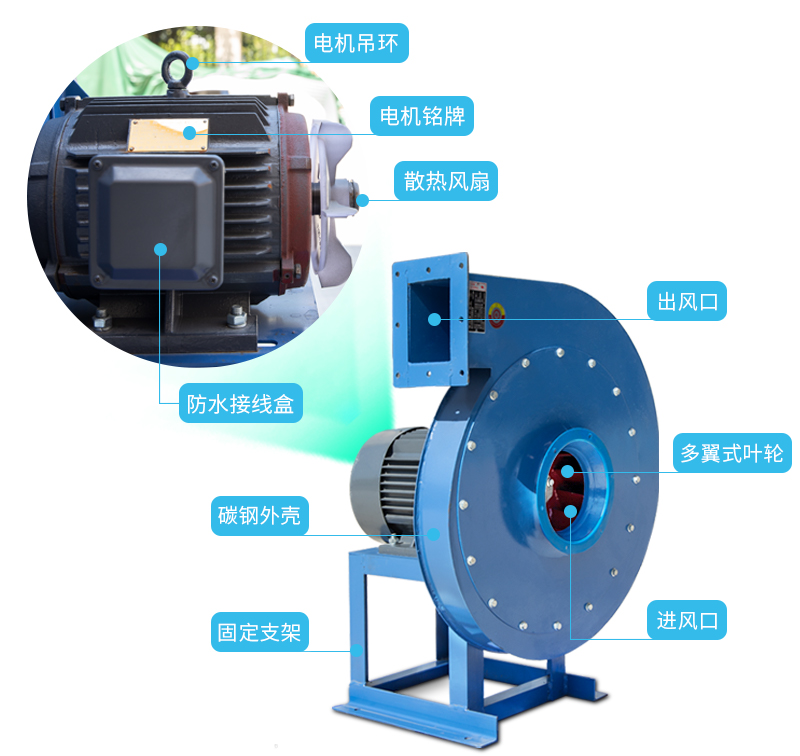

產品解析

電機內置散熱風扇在電機工作時通過葉輪給電機降溫

The built-in cooling fan of the motor cools the motor through the impeller?when the motor is working

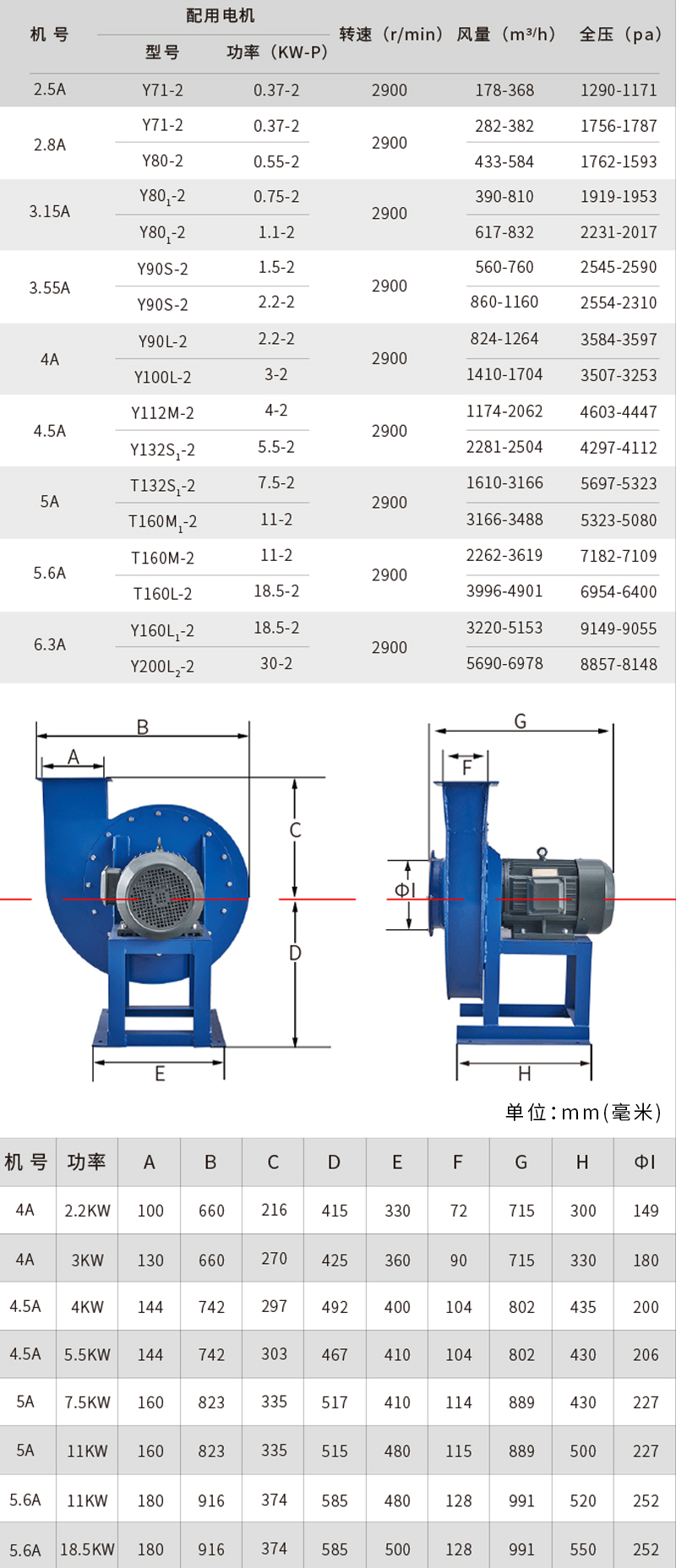

技術安裝參數

尺寸為實物測量 略有誤差 以收到的實物為準

The size is the actual measurement, with a slight error, the actual product?received shall prevail
